Swagger 사용하기

build.gradle 적용

---

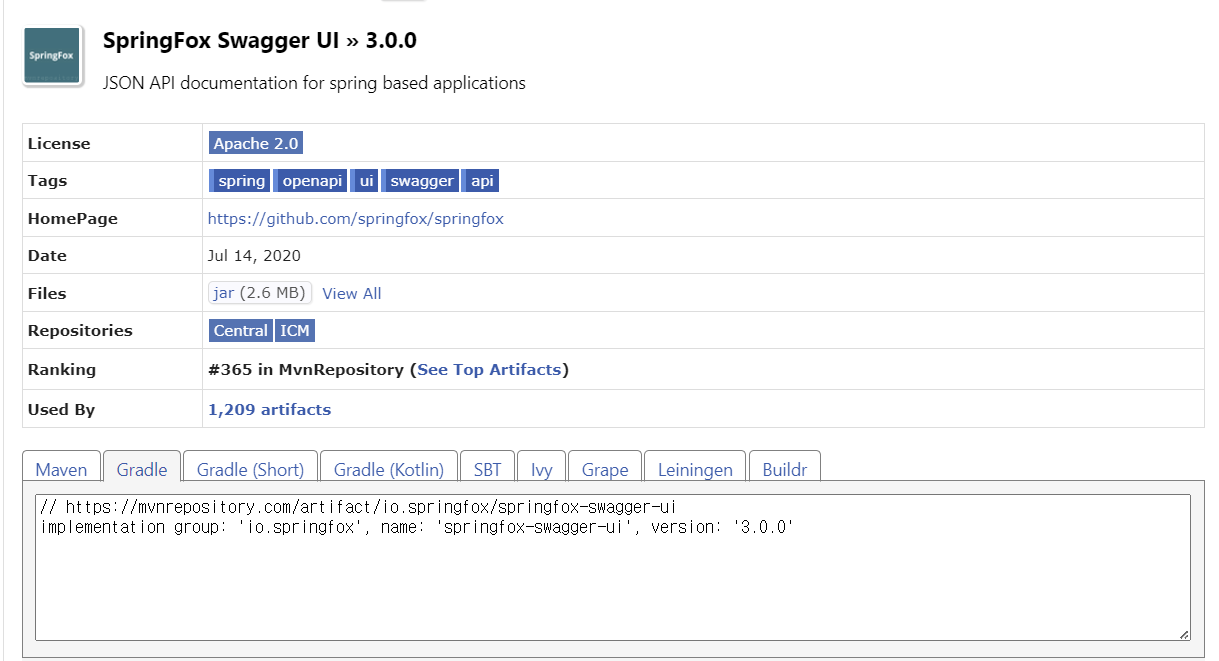

• gradle dependency 참고 사이트(https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui)에서 코드 복사해서 붙여 넣기

dependencies {
   //swagger
	implementation 'io.springfox:springfox-boot-starter:3.0.0'
}





SwaggerConfig.java

---

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Bean
    public Docket api() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.any())
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("Diary Side-Project API")
                .version("1.0.0")
                .description("다이어리 Swagger API 입니다.")
                .build();
    }
}



코드 적용

---

• controller 클래스

@RestController
@RequestMapping("api/members")
@Validated
@RequiredArgsConstructor
@ApiOperation(value = "회원 정보 API", tags = {"Member-Controller"}) // Swagger 추가 (1)
public class MemberController {
    private final MemberService memberService;
    private final MemberMapper mapper;

    //회원가입
    @PostMapping
    @ApiOperation(value = "회원가입", notes = "새로운 회원을 등록합니다.") // Swagger 추가 (2)
    @ApiResponses(value = { // Swagger 추가 (3)
            @ApiResponse(code = 200, message = "회원가입 완료")
    })
    public ResponseEntity postMember(@Valid @RequestBody MemberDto.Post requestBody) {
        Member member = memberService.createMember(mapper.memberPostToMember(requestBody));

        return ResponseEntity.ok(mapper.memberToMemberResponse(member));
    }

...

    //닉네임으로 회원 검색
    @GetMapping("/search")
    @ApiOperation(value = "이름으로 멤버 검색", notes = "nickname을 통해서 멤버를 검색합니다.") // Swagger 추가 (4)
    public ResponseEntity search(
            @ApiParam(name = "nickname", value = "이름", required = true, example = "홍길동") // Swagger 추가 (5)
            @RequestParam(value = "nickname") String nickname) {
        return ResponseEntity.ok(mapper.memberToMemberResponse(memberService.findByNiceName(nickname)));
    }



}

• dto 클래스

@Getter
@NoArgsConstructor
@ApiModel("Member Post") // Swagger 추가 (1)
public static class Post{
    @Email
    @NotBlank(message = "이메일을 입력해주세요")
    @ApiModelProperty(notes = "이메일", required = true, example = "test@gmail.com") // Swagger 추가 (2)
    private String email;

    @NotBlank(message = "패스워드를 입력해주세요.")
    @Pattern(regexp = "(?=.*[0-9])(?=.*[a-z])(?=.*\\W)(?=\\S+$).{8,}", message = "비밀번호는 8자 이상, 영문 소문자, 숫자, 특수문자를 적어도 1개 포함시켜주세요")
    @ApiModelProperty(notes = "비밀번호", required = true, example = "qwer1234!!") // Swagger 추가 (3)
    private String pw;
}



• 사용 메서드 - Controller 클래스
  • @ApiOperation(value = "회원 정보 API", tags = {"Member-Controller"})
  • @ApiOperation(value = "회원가입", notes = "새로운 회원을 등록합니다.")
    @ApiResponses(value = {
                @ApiResponse(code = 200, message = "회원가입 완료"),
               @ApiResponse(code = 404, message = "Member Not Found")
    })
  • @ApiParam(name = "nickname", value = "이름", required = true, example = "홍길동")
• 사용 메서드 - dto 클래스
  • @ApiModel("Member Post")
  • @ApiModelProperty(notes = "비밀번호", required = true, example = "qwer1234!!")



코드 실행

---

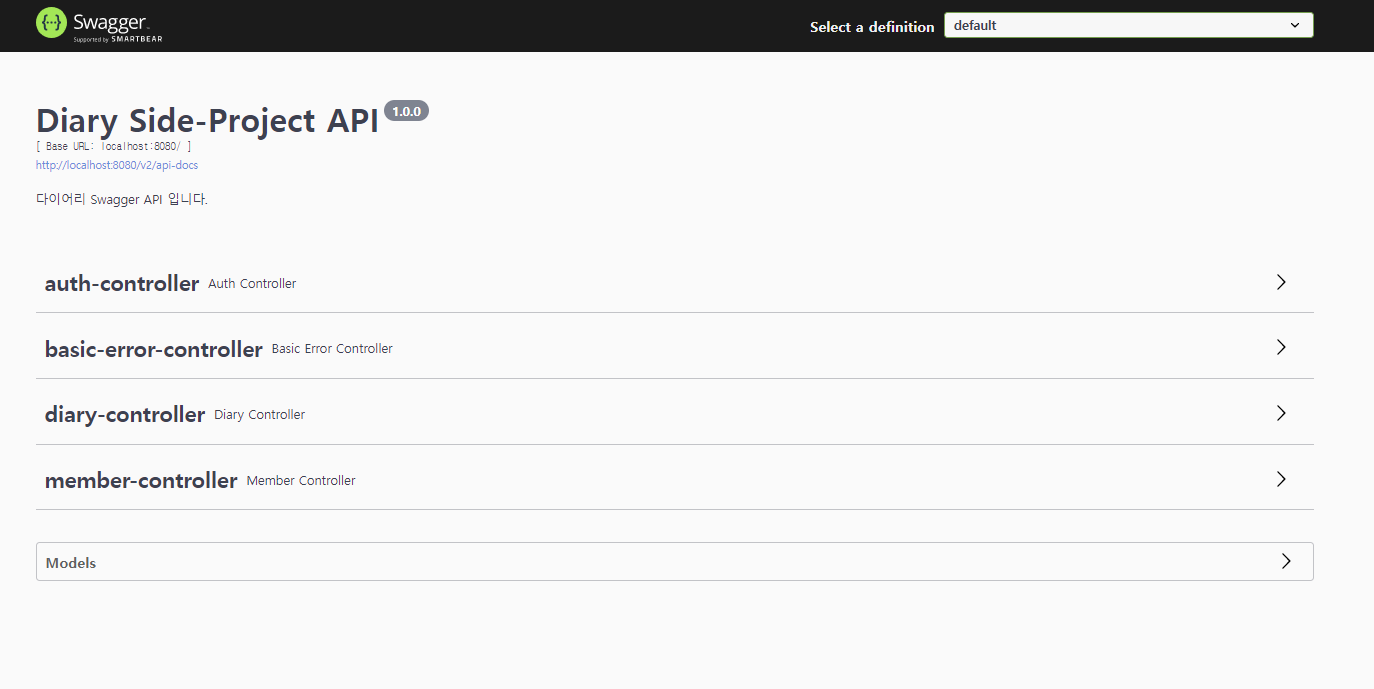

• http://localhost:8080/swagger-ui/index.html 또는 http://localhost:8080/swagger-ui/



참고 사이트

---

• https://velog.io/@borab/Spring-boot-Swagger-%EC%84%A4%EC%A0%95-gradle



트러블 슈팅

---

• http://localhost:8080/swagger-ui.html의 Whitelabel Error Page
  • https://us-study.tistory.com/158
• org.springframework.context.ApplicationContextException: Failed to start bean 'documentationPluginsBootstrapper'; nested exception is java.lang.NullPointerException
  • https://us-study.tistory.com/156
